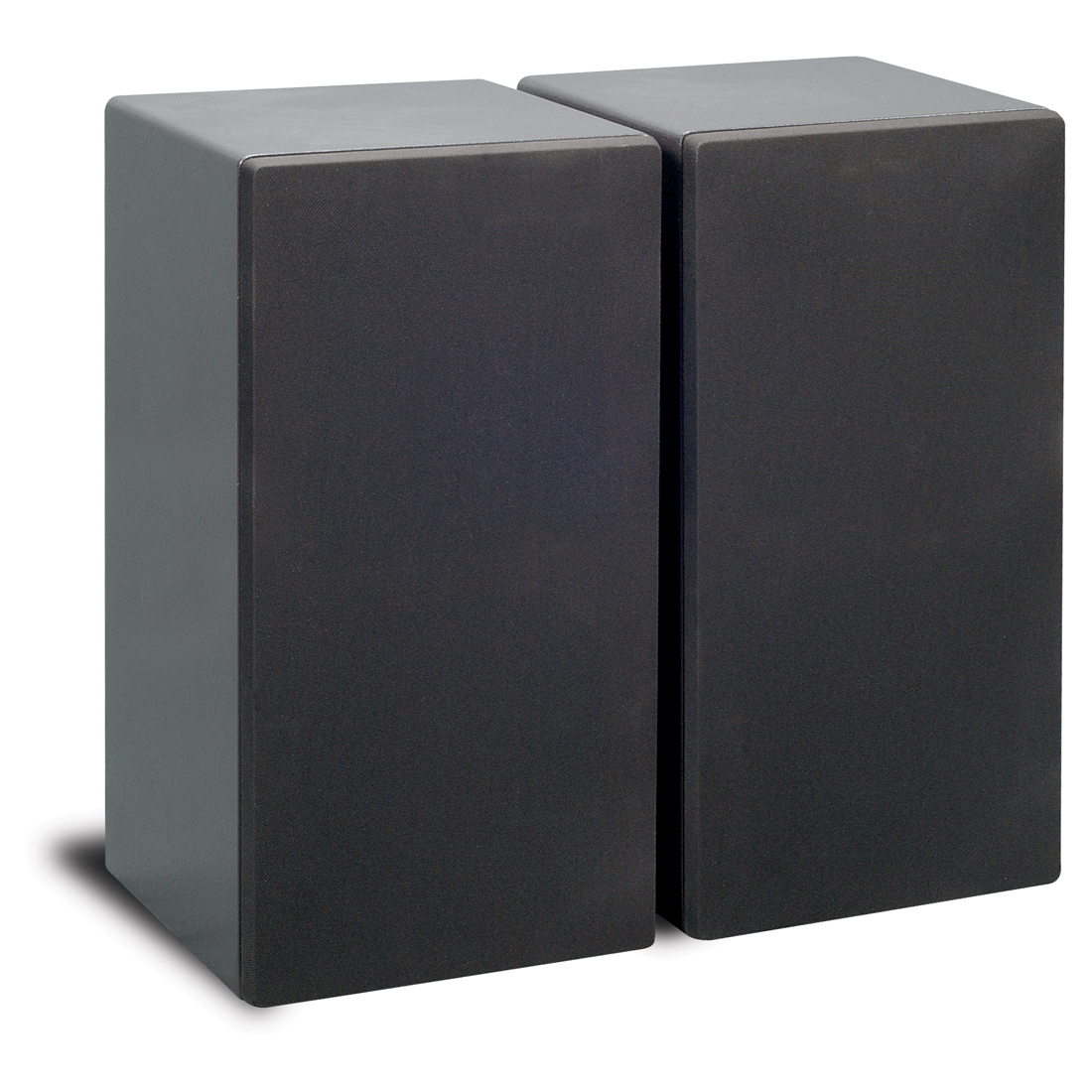

AH 150
SPECIFICATIONS
LOUDSPEAKER |
|
Power (EIA RS 426 A) |
Continuous: 150 W Program: 300 W |
Nominal impedance |
8 ohm |
Sensitivity (SPL 1W/1m) |
94 dB |
MAX SPL dB 118 117 |
114 dB |
Frequency response |
70 Hz - 18.000 Hz (± 3db) 40 Hz - 23.000 Hz (- 10db) |
Crossover frequency |
600 Hz / 6 -12 dB/ottava 6000 Hz / 6-12 dB/ottava |
Components |
Low: 15" woofer long throw Mid: 5" mid dome High: 1" driver |
Construction |
Anti-scratch brown finish |
Dimensions (W x H x D) |
308 x 606 x 300 mm / 12.1 " x 23.9 " x 11.8" |
Weight |
17,5 kg / 38.6 lbs |
Accessories |
Speaker supporting bracket |
Powered amplifier recommended for the AH 150 speaker cabinets: |
|
