DRAKE™ TECHNOLOGY (Advanced Sampled Wave Processing™)
13 Main stops
“SOLO” Function for the MANUAL stops by tab double pressing
“Superoctave” option for the MANUAL stops during “SOLO” Function
5 Additional stops
61-note manual (C-C) with dynamic control

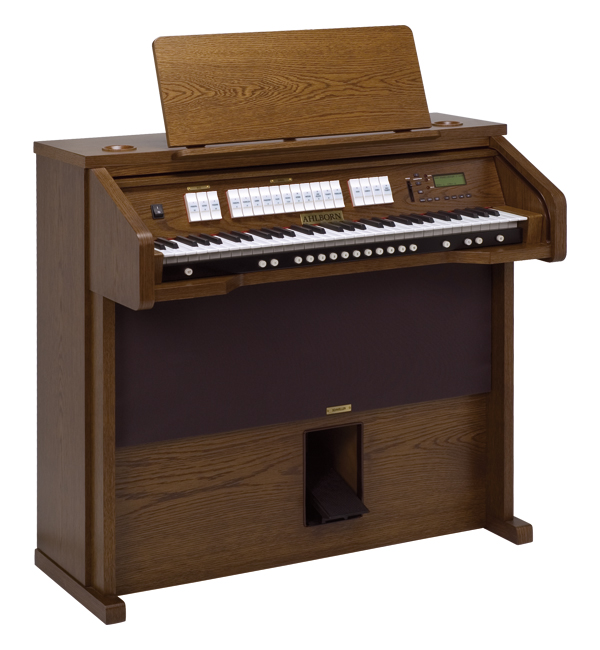

Rocker Tab Console
Adjustable Combinations: 100 memories (Stage Piston Sequencer)
18 Reversible thumb pistons with indicator lights
Set and General Cancel Pistons. Automatic return to hand-set registration
Expression Pedal
Master and Headphone volume
Monophonic Bass Volume
Bass Enclosed
Preset: Pleno (programmable)
Short Octave
9 Historic Temperaments
4 Programmable Temperaments
Transposer (-6/+6 semitones)
Fine pitch adjustment of the instrument
Programmable Digital Reverb
Stereo Headphone Output
2 x MIDI In-Out-Thru
Personal Computer Plug
Stereo Internal Amplification (2 x 70 W)
Speakers: 2 full range, 2 tweeters
Output Sound Channelling: 11 divided Windchest Layouts (progr.)
2 External Output Channels
2 Auxiliary stereo inputs
Digital Equalisation System with 5 bands on Internal / External Amplification (progr.)
2 Microphone Inputs with separate sensitivity controls
General controls programmable by Built-in PROGRAMMING SECTION with alphanumeric display (4 x 20)
Voicing functions (per Note, Stop and Division)
On-Board Multi-Track Sequencer
49 Musical Pieces (Demos)

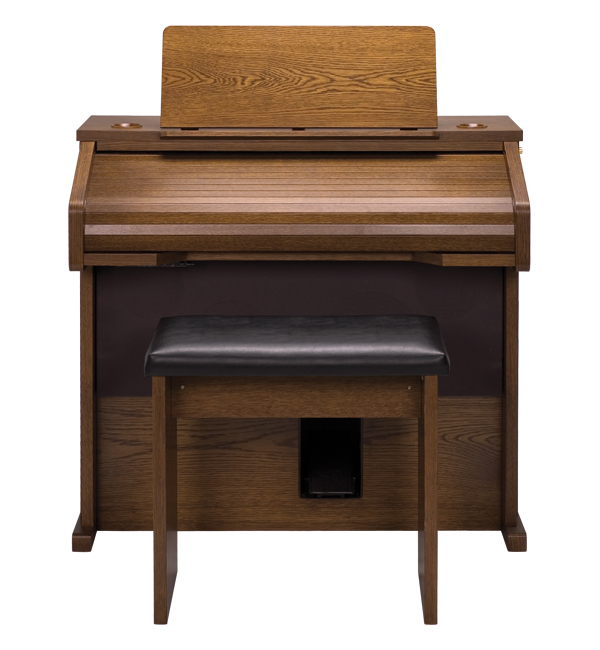

Elegant wooden console: dark oak or light oak
Optional ALHBORN-TWK (Tracker Wooden Keyboard)
Total Pipe Organ Compatibility with P.O.M.I. (Pipe Organ Midi Interface)
Dimensions (W x H x D):
1.000 x 970 x 550 mm
39,4" x 38,2" x 21,7"
Weight: 71 kg / 156,5 lbs
