DRAKE™ Technology
(Advanced Sampled Wave Processing)
Stops
Italian and French disposition:
- 24 main stops
- 5 additional stops (alternatively selectable to each division)
German disposition:
- 24 main stops
- 5 additional stops (alternatively selectable to each division )
Dutch disposition:
- 24 main stops
- 13 additional stops distributed within the three divisions (alternatively selectable to each division)
Additional Stops selection by Rocker Tab (Quick List™)
Two 61-note manuals (C-C) with dynamic control
30-note Pedalboard (C-F) straight-radiating or parallel
10 general combination action (50 memories) for a total of 500 combinations
Stage Piston Sequencer
Set and General Cancel Pistons. Automatic return to hand-set registration
22 reversible thumb pistons with indicator lights or on display
Swell Expression Pedal
Plenum I, II, Tutti: programmable
Slider controls for Great and Pedal volume
Manual Inversion
Short Octave on Manuals and Pedalboard
Automatic Pedal
Automatic Pedal as PEDAL to GREAT monophonic coupler
9 Historic and 4 Programmable Temperaments
Transposer (-6 / +6 semitones)
Master Volume
Programmable Digital Reverb (including internal 3-D Effect)
Stereo Headphone Output
Double independent MIDI connection (In-Out-Thru)
Personal Computer Plug (PC, Mac)
Internal amplification: 3 channel amplification system, 1 x 140W, 2 x 70W
Speakers:
10" woofer (bass reflex)
2 middle range
2 tweeters
Output Sound Channelling: 11 divided Windchest Layouts™ per Stop
2 External Output Channels
Internal/External amplifications: Programmable channels per Stop, Family, Division and Effects
Programmable Auxiliary Stereo Input
Digital Equalisation System with 5 programmable bands (on Internal/External Amplification)
2 Microphone Inputs (with separate sensitivity controls)
Voicing functions (per Note, Stop and Division)
General controls, programmable by Built-In PROGRAMMING SECTION™ with alphanumeric display (4 x 20)
On-Board Multi-Track Sequencer
30 demo pieces from organ literature

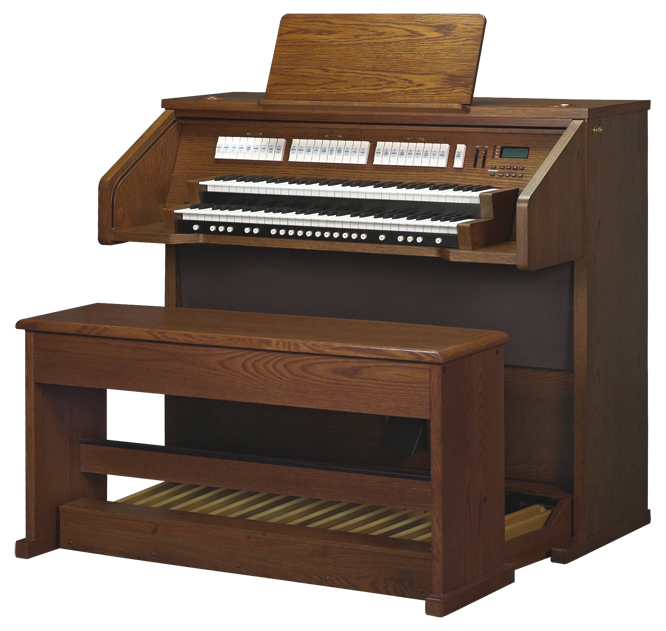

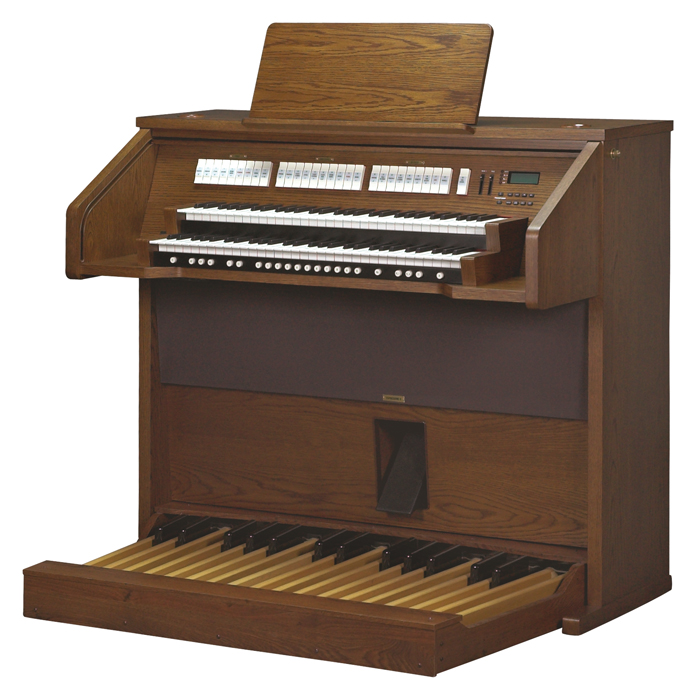

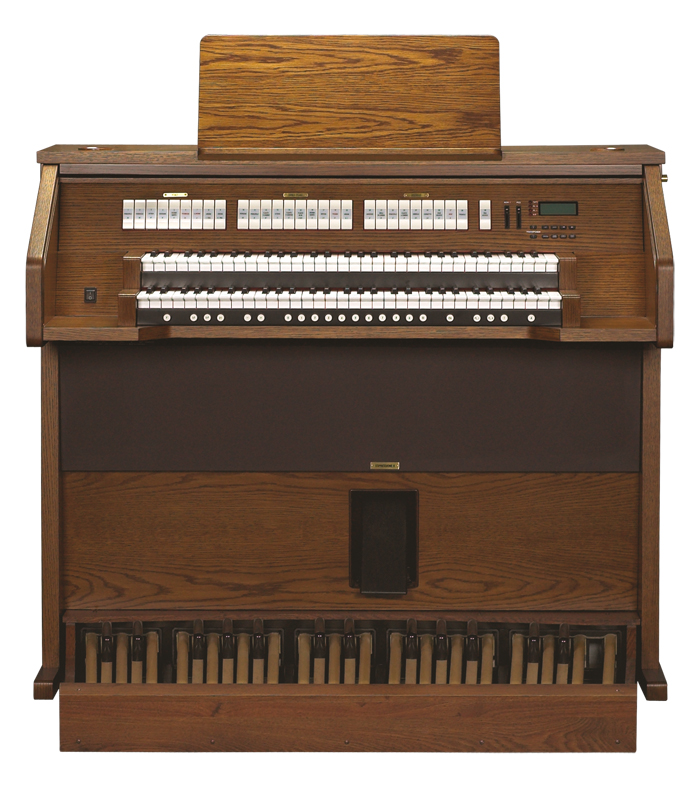

Elegant wooden console: dark or light oak
Rocker Tabs console
Optional adjustable AHLBORN-TWK (Tracker Wooden Keyboards)
Total Pipe Organ Compatibility with P.O.M.I. (Pipe Organ Midi Interface)
Dimensions (W x H x D):
1.310 x 1.140 x 680 / 970* mm
51.6" x 45" x 26.7" / 39.2" *
(*with Pedalboard)
Weight: 125 kg / 275.6 lbs (without Bench and Pedalboard)
