DRAKE™ Technology
(Advanced Sampled Wave Processing)
Stops
Italian and French disposition:
- 48 main stops
- 140 total stops
- 9 additional stops (selectable to each division)
German disposition:
- 48 main stops
- 147 total stops
- 10 additional stops (selectable to all the manual divisions)
- 12 additional stops (selectable to the only pedal division)
Dutch disposition:
- 48 main stops
- 182 total stops
- 3 additional stops (selectable to all the manual divisions)
- 2 additional stops (selectable to the only pedal division)
Alternate Stops selection by Rocker Tab (Quick List™)
Organ configurations - either factory or personalised Stop Lists saved to Organ Rocker Tabs (Org. l, 2, 3)
Three 61-note manuals (C-C) with dynamic control; simulated Tracker Touch
Standard format Pedalboard concave-radiating or parallel (AGO / BDO / Malines)
10 general combination action (50 memories) for a total of 500 combinations
Stage Piston Sequencer
Set and General Cancel Pistons. Automatic return to hand-set registration
23 reversible thumb pistons with indicator lights or on display
24 reversible toe studs with indicator lights
Balanced Crescendo Pedal (20 levels) with display control
Swell and Choir/Positive Expression Pedal
Crescendo, Plenum I, II, III, Reeds, Tutti: all programmable
Slider controls for Great and Pedal volume
Manual Assignment
Short Octave on Manuals and Pedalboard
Automatic Pedal
Automatic Pedal as PEDAL to GREAT monophonic coupler
9 Historic and 4 Programmable Temperaments
Transposer (-6 / +6 semitones)
Master Volume
Programmable Digital Reverb
Stereo Headphone Output
Double independent MIDI connection (In-Out-Thru)
Personal Computer Plug (PC, Mac)
Internal amplification: 3 channel amplification system, 1 x 140W, 2 x 70
Speakers:
10" woofer (bass reflex)
2 middle range
2 tweeters
Output Sound Channelling: 11 divided Windchest Layouts™ per Stop
8 External Output Channels
External Output Sound Channelling: per Stop, Family, Division and Effects
2 Programmable Auxiliary Stereo Inputs
Digital Equalisation System with 5 programmable bands (on Internal Amplification and for each External Output)
2 Microphone Inputs (with separate sensitivity controls)
Wireless Controlled INTERACTIVE PROGRAMMER™
Voicing functions (per Note, Stop and Division)
General controls, programmable by INTERACTIVE PROGRAMMER™
General controls, programmable by Built-In PROGRAMMING SECTION™ with alphanumeric display (4 x 20)
On-Board Multi-Track Sequencer
On-Board Floppy Disk Drive (3,5" HD)
Built-In Lights for Pedalboard
Adjustable music rest

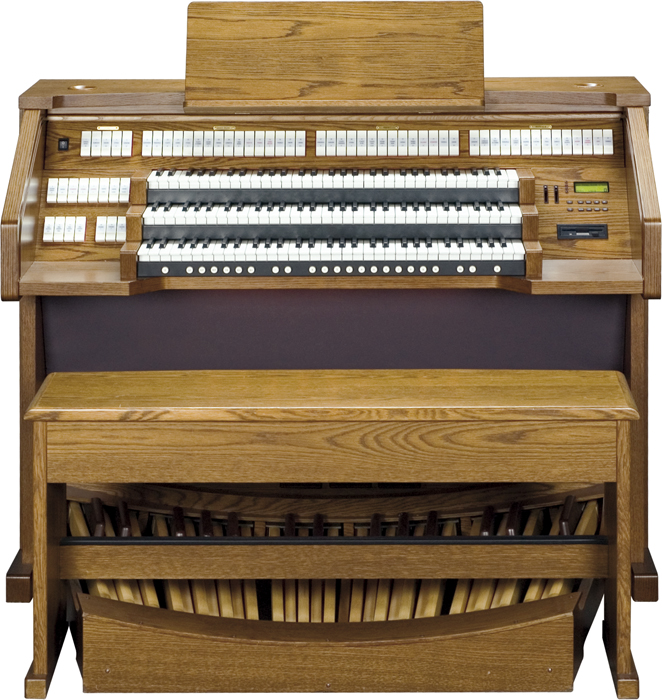

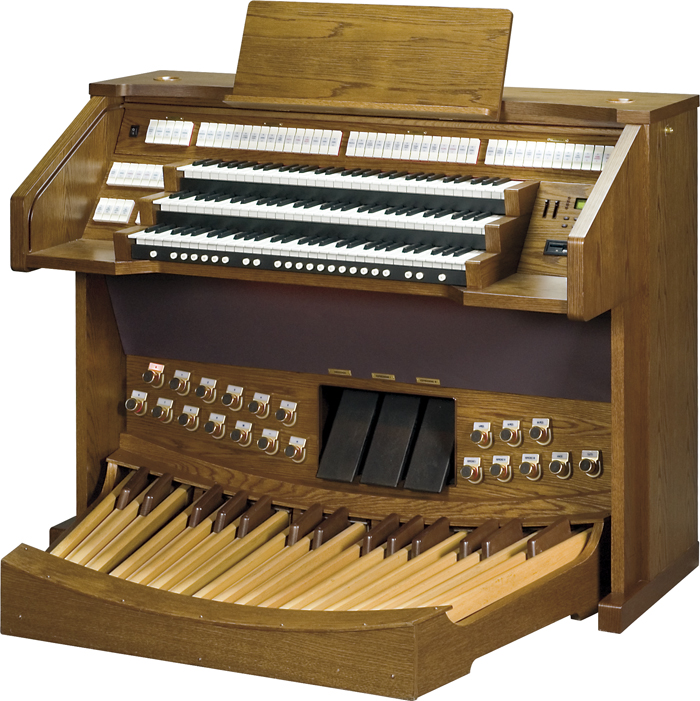

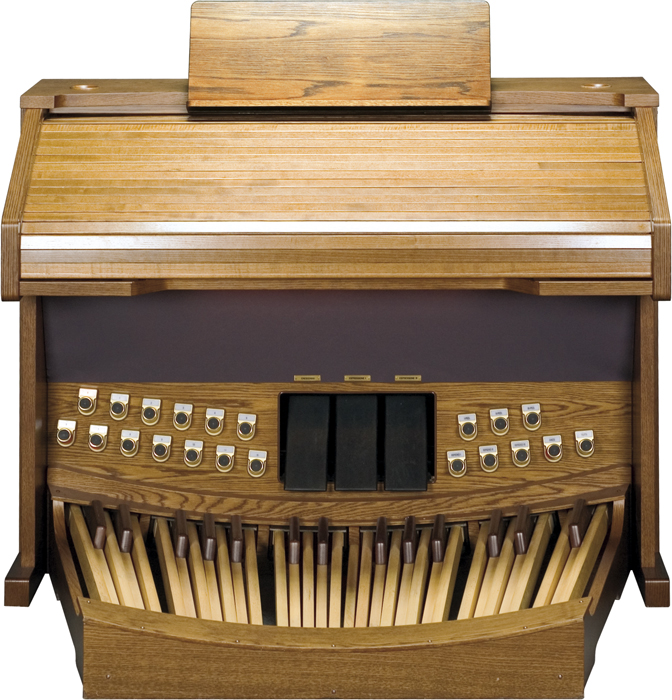

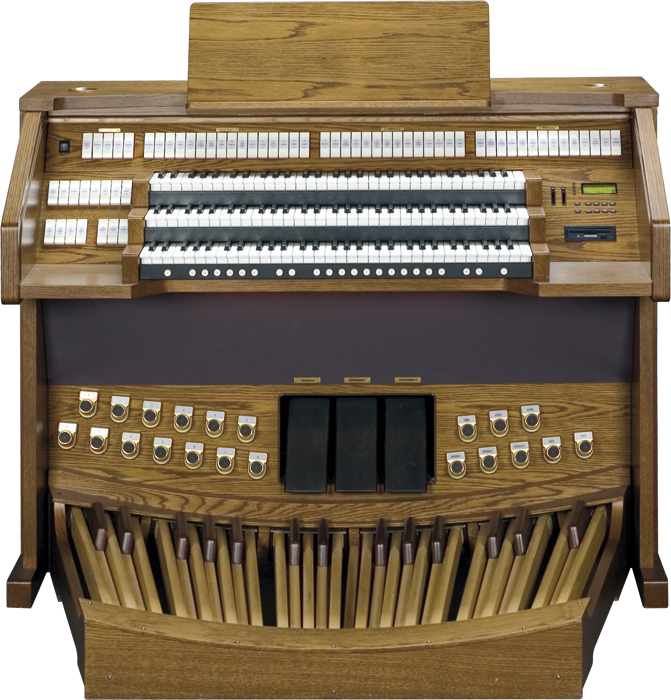

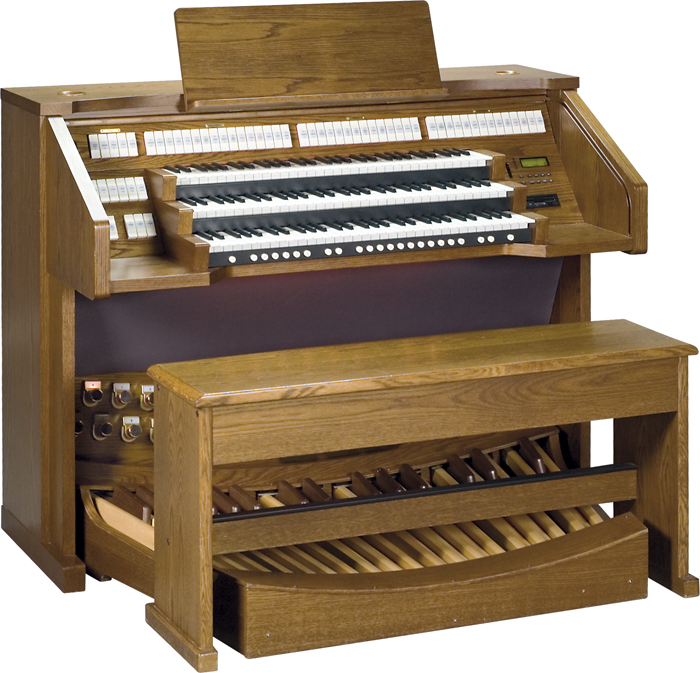

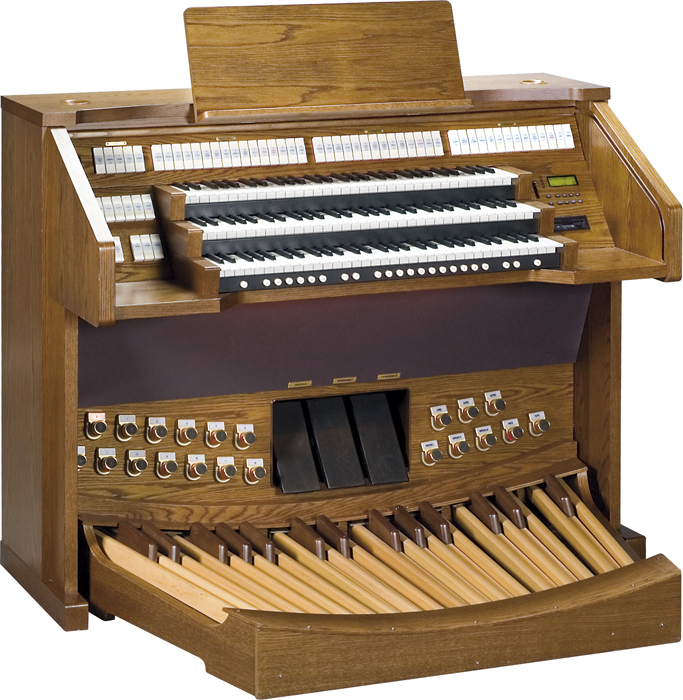

Elegant wooden console: dark or light oak
Wooden finished Drawknobs (DK version) or Rocker Tabs (RT version) console
Optional adjustable AHLBORN-TWK (Tracker Wooden Keyboards)
Total Pipe Organ Compatibility with P.O.M.I. (Pipe Organ Midi Interface)
Dimensions (W x H x D):
1.450 x 1.180 x 760 / 1.150* mm
57.1" x 46.5" x 30" / 45.3"* (*with Pedalboard)
Weight: 166 kg / 366 lbs (without Bench and Pedalboard)
