DRAKE™ Technology
(Advanced Sampled Wave Processing)
Stops
Italian and French disposition:
- 32 main stops
- 90 total stops
- 5 additional stops (selectable to each division)
German disposition:
- 32 main stops
- 96 total stops
- 5 additional stops (selectable to each division)
Dutch disposition:
- 32 main stops
- 69 total stops
- 3 additional stops (one single stop for each division)
Alternate Stops selection by Rocker Tab (Quick List™)
Organ Presets - Alternate Stops configurations set by the Factory (Preset l, 2, 3, 4)
Two 61-note manuals (C-C) with dynamic control; simulated Tracker Touch
Standard format Pedalboard concave-radiating or parallel (AGO / BDO / Malines)
10 general combination action (50 memories) for a total of 500 combinations
Stage Piston Sequencer
Set and General Cancel Pistons. Automatic return to hand-set registration
22 reversible thumb pistons with indicator lights or on display
Balanced Crescendo Pedal (20 levels) with display control
Swell Expression Pedal
Crescendo, Plenum I, II, Reeds, Tutti: all programmable
Slider controls for Great and Pedal volume
Manual Inversion
Short Octave on Manuals and Pedalboard
Automatic Pedal
Automatic Pedal as PEDAL to GREAT monophonic coupler
9 Historic and 4 Programmable Temperaments
Transposer (-6 / +6 semitones)
Master Volume
Programmable Digital Reverb (including internal 3-D Effect)
Stereo Headphone Output
Double independent MIDI connection (In-Out-Thru)
Personal Computer Plug (PC, Mac)
Internal amplification: 3 channel amplification system, 1 x 140W, 2 x 70W
Speakers:
10" woofer (bass reflex)
2 middle range
2 tweeters
Output Sound Channelling: 11 divided Windchest Layouts™ per Stop
2 External Output Channels
Internal/External amplifications: Programmable channels per Stop, Family, Division and Effects
Programmable Auxiliary Stereo Input
Digital Equalisation System with 5 programmable bands (on Internal Amplification and for each External Output)
2 Microphone Inputs (with separate sensitivity controls)
Voicing functions (per Note, Stop and Division)
General controls, programmable by Built-In PROGRAMMING SECTION™ with alphanumeric display (4 x 20)
On-Board Multi-Track Sequencer
On-Board Floppy Disk Drive (3,5"e; HD)
Built-In Lights for Pedalboard

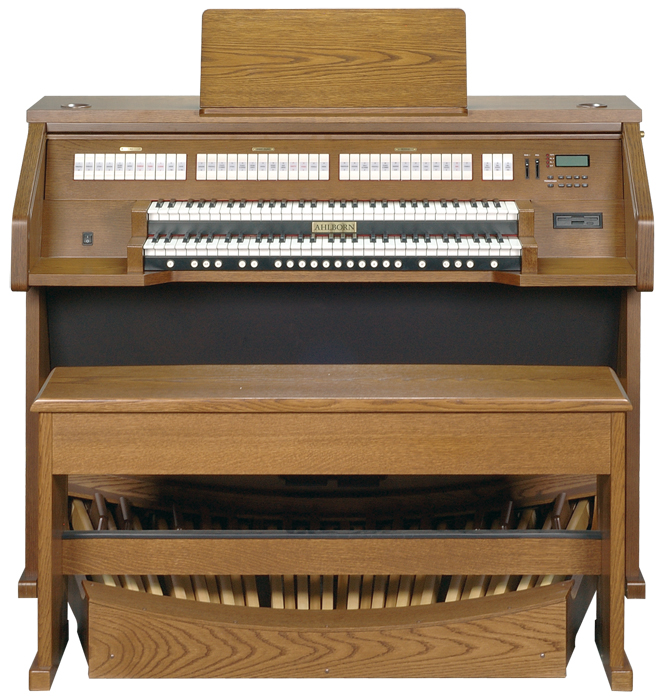

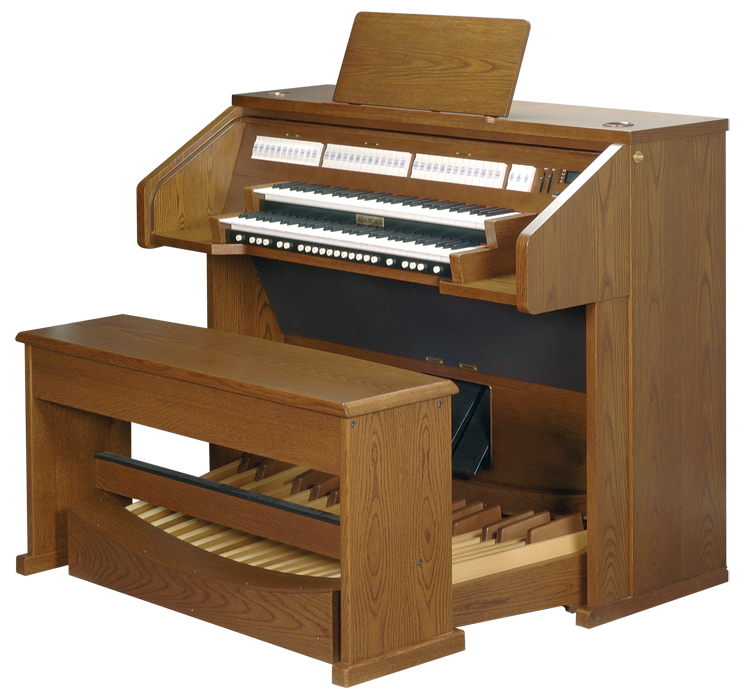

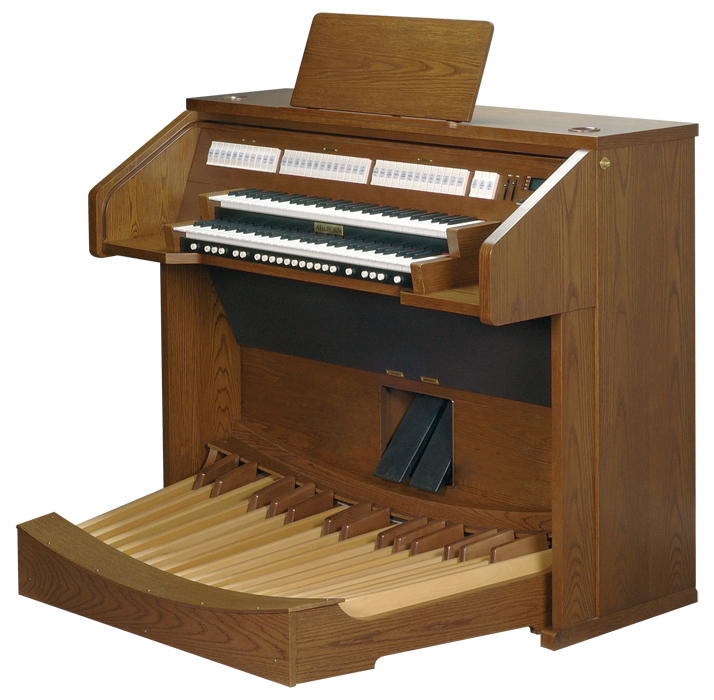

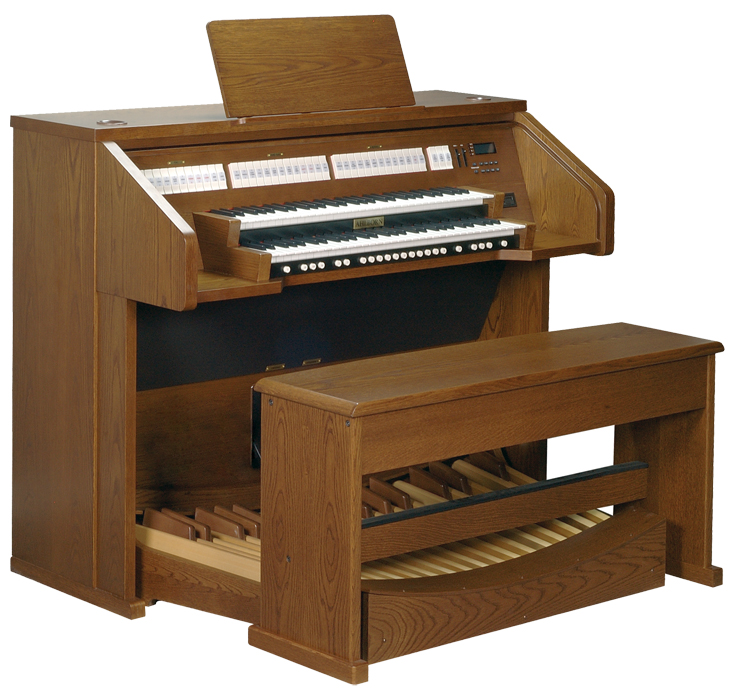

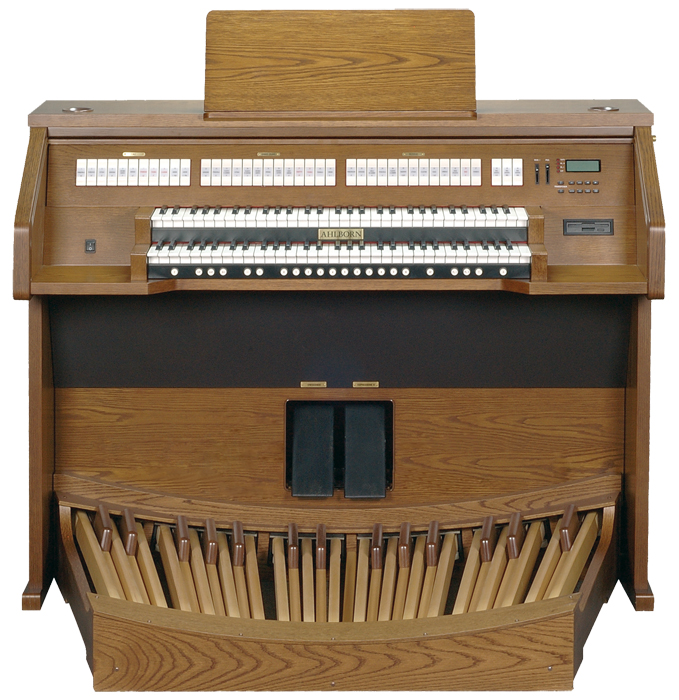

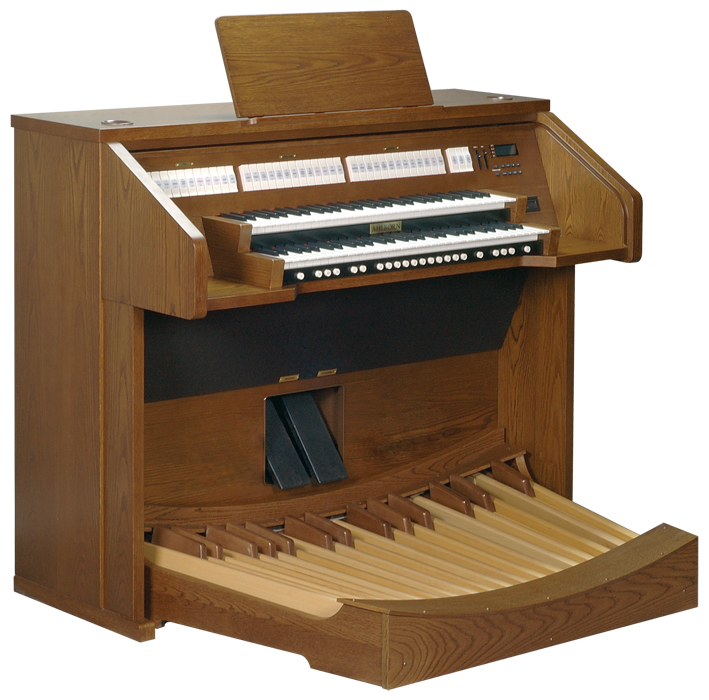

Elegant wooden console: dark or light oak
Rocker Tabs console
Optional adjustable AHLBORN-TWK (Tracker Wooden Keyboards)
Total Pipe Organ Compatibility with P.O.M.I. (Pipe Organ Midi Interface)
Dimensions (W x H x D):
1.450 x 1.140 x 680 / 1.060* mm
57.1" x 44.9" x 26.8" / 41.8" *
(*with Pedalboard)
Weight: 133 kg / 293.2 lbs (without Bench and Pedalboard)
